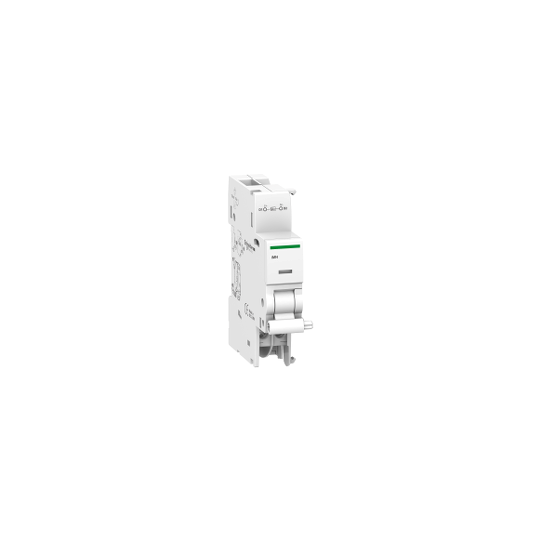

Schneider Electric Acti9 ACTI9 IMN 24VAC / 24VDC Undervoltage release - A9A27108
Schneider Electric Acti9 ACTI9 IMN 24VAC / 24VDC Undervoltage release - A9A27108

ACTI9 IMN 24VAC / 24VDC Undervoltage release - A9A27108

SKU : A9A27108

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

ACTI9 IMN 24VAC / 24VDC Undervoltage release - A9A27108

DESCRIPTION

Range: Acti9
Product or component type: Undervoltage release
Range of product: IIDISW-NAIDPN VigiIC60
Device short name: iMN
Device application: Protection
[Uc] control circuit voltage: 24 V AC 50/60 Hz24 V DC
Control type: Toggle
9 mm pitches: 2
Product compatibility: Single terminalISW-NAIC60IIDIDPN VigiDouble terminal
Protection type: Undervoltage
Range compatibility: Acti 9 (Acti9 iDPN Vigi)Acti 9 (Acti9 iID)Acti 9 (Acti9 iSW-NA)Acti 9 (Acti9 iC60) double terminals miniature circuit breaker
Local signalling: Red indicator light on the front face
Mounting mode: Clip-on
Mounting support: DIN rail
Comb busbar and distribution block compatibility: Top and bottom: YES
Height: 85 mm
Width: 17.5 mm
Depth: 73 mm
Net weight: 69 g
Colour: White
Connections - terminals: Clamp terminal (bottom) - 1 cable(s) 1...6 mm² - rigid without cable endClamp terminal (bottom) - 1 cable(s) 0.5...4 mm² - flexible without cable endClamp terminal (bottom) - 2 cable(s) 1...2.5 mm² - rigid without cable endClamp terminal (bottom) - 2 cable(s) 1...2.5 mm² - rigid with cable end
Wire stripping length: 10 mm for bottom connection
Tightening torque: 1 N.m bottom
Compatibility code: IMN
Standards: EN/IEC 60947-5-1
Ambient air temperature for operation: -35...70 °C
Ambient air temperature for storage: -40...85 °C
Sustainable offer status: Green Premium productREACh Regulation
Unit Type of Package 1: PCENumber of Units in Package 1
Code EAN: 3606485441474
