Schneider Electric Acti 9 Acti9 iPB 1NO single push button grey - A9E18032
Schneider Electric Acti 9 Acti9 iPB 1NO single push button grey - A9E18032

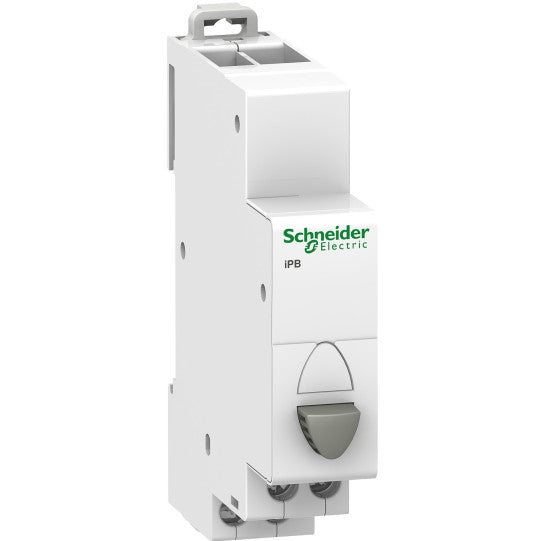

Acti9 iPB 1NO single push button grey - A9E18032

SKU : A9E18032

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

Acti9 iPB 1NO single push button grey - A9E18032

DESCRIPTION

Range of product: IPB
Range: Acti 9
Product name: Acti 9 iPB
Product or component type: Push-button
Device short name: IPB
Standards: IEC 60947-5-1IEC 60669-1
Contacts type and composition: 1 NO
[Ie] rated operational current: 20 A
[Ue] rated operational voltage: 250 V AC
Control type: 1 push-button grey
Mounting mode: Fixed
Mounting support: 35 mm symmetrical DIN rail
Comb busbar and distribution block compatibility: Upside: ClarioUpside: LibrioUpside: ProDis
9 mm pitches: 2
Height: 82 mm
Width: 18 mm
Depth: 71 mm
Colour: White
Electrical durability: AC-22: 30000 cycles AC 50/60 Hz
Connections - terminals: Staggered tunnel terminal1 cable(s) 0.5 mm² rigidStaggered tunnel terminal1 cable(s) 0.5 mm² flexibleStaggered tunnel terminal1 cable(s) 0.5 mm² flexible with ferruleStaggered tunnel terminal2 cable(s) 2.5 mm² rigidStaggered tunnel terminal2 cable(s) 2.5 mm² flexibleStaggered tunnel terminal2 cable(s) 2.5 mm² flexible with ferrule
Wire stripping length: 9 mm
Tightening torque: 1 N.m
Compatibility code: IPB
Market segment: ResidentialSmall commercial
Tropicalisation: 2
Relative humidity: 95 % at 55 °C
Ambient air temperature for operation: -35...70 °C
Ambient air temperature for storage: -40...80 °C
Sustainable offer status: Green Premium productREACh Regulation
Code EAN: 3606480088247
