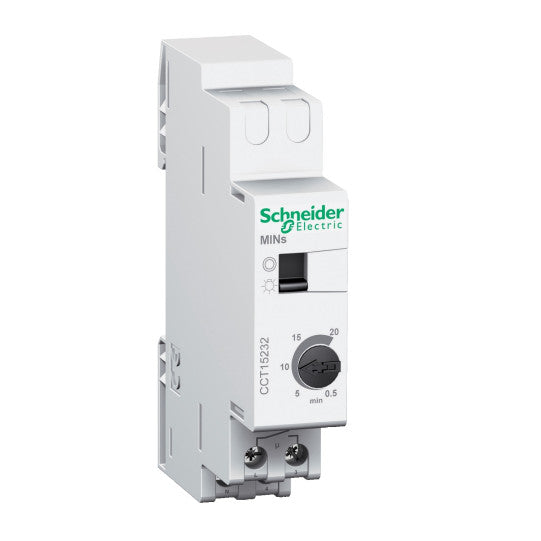

Schneider Electric Acti 9 Acti9 - MINs - silent electronic timer - adjustable from 0.5 to 20 minutes - CCT15232
Schneider Electric Acti 9 Acti9 - MINs - silent electronic timer - adjustable from 0.5 to 20 minutes - CCT15232

Acti9 - MINs - silent electronic timer - adjustable from 0.5 to 20 minutes - CCT15232

SKU : CCT15232

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

Acti9 - MINs - silent electronic timer - adjustable from 0.5 to 20 minutes - CCT15232

DESCRIPTION

Range of product: Acti 9
Range: Acti 9
Product name: Acti 9 MIN
Device short name: MINs
Product or component type: Silent electronic timer
Product compatibility: Mechanical compatibility with electrical comb busbars
Colour tint: White (RAL 9003)
Device application: Building
Load type: 230 V AC halogen lamp 2300 W230 V AC incandescent lamp 2300 WFluorescent lamp 9 x electronic ballast 7 WDual mounted fluorescent tubeconventional ballast 2300 VAFluorescent tubeelectronic ballast 300 VANon-corrected fluorescent tubeconventional ballast 2300 VASerial-corrected fluorescent tubeconventional ballast 2300 VAFluorescent lamp 7 x electronic ballast 11 WFluorescent lamp 7 x electronic ballast 15 WFluorescent lamp 7 x electronic ballast 20 WFluorescent lamp 7 x electronic ballast 23 WFluocompact lampconventional ballast 1500 VAParallel-corrected fluorescent tubeconventional ballast 400 VA
Power consumption in VA: 6 VA
Maximum switching current: 16 A - 230 V AC pf = 1
[Ue] rated operational voltage: 230 V AC +10 % -15 % at 50/60 Hz
Time delay: Adjustable from 0.5 to 20 minutes
Mounting support: DIN rail
9 mm pitches: 2
Connections - terminals: Screw terminals -
Electrical insulation class: Class II
Width: 18 mm
Height: 89 mm
Depth: 66 mm
Product weight: 75 g
Switch off warning: No
Additional function: None
Selection of the type of connection: Automatic
Insulation shield: Yes
Compatibility code: MINs
Market segment: Small commercial
Ambient air temperature for operation: -10...50 °C
IP degree of protection: IP20 B
Sustainable offer status: Green Premium productREACh Regulation
Code EAN: 3303431062621
