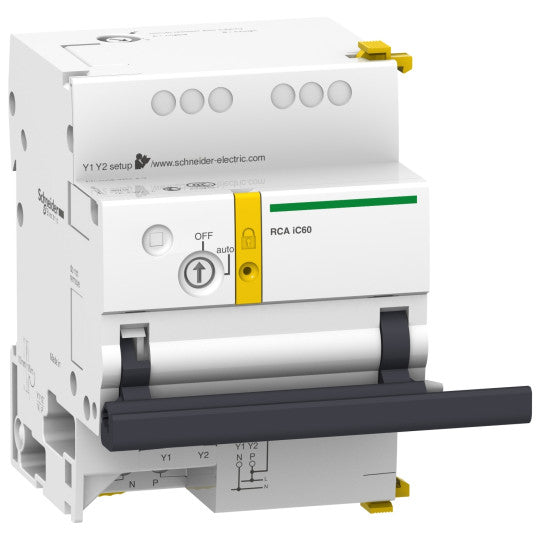

Acti9 - RCA remote ctrl aux for iC60 1P-1PN-2P - A9C70112
DESCRIPTION
| Range of product: | IC60 |
|---|---|
| Range: | Acti 9 |
| Product or component type: | Remote control auxiliary |
| Device short name: | RCA iC60 |
| Signal contacts composition: | 1 OF volt-free contacts |
| Signalling circuit voltage: | Volt-free contact 24...230 V 0.01...1 A AC |
| Control type: | Remote control impulse and maintained 230 V AC 50/60 Hz |
|---|---|
| Input current: | 5 mA impulse5 mA maintained |
| Impulse duration: | >= 200 ms control circuit |
| Response time: | |
| [Us] rated supply voltage: | 230 V AC 50/60 Hz |
| Power consumption in W: | 1 W |
| [Ui] rated insulation voltage: | 400 V |
| [Uimp] rated impulse withstand voltage: | 6 kV |
| Value of setting: | Mode A: reclosing authorized after trippingMode B: reclosing inhibited after trippingAuto: remote control authorizedOff: remote control inhibited |
| Local signalling: | Flashing green LED: ready to operateFlashing orange LED: not operational |
| Mounting mode: | Fixed |
| Mounting support: | DIN rail |
| Comb busbar and distribution block compatibility: | NO |
| 9 mm pitches: | 7 |
| Height: | 93 mm |
| Width: | 63 mm |
| Depth: | 75.5 mm |
| Product weight: | 400 g |
| Colour: | White |
| Electrical durability: | 10000 cycles |
| Mechanical durability: | 10000 cycles |
| Provision for padlocking: | Padlockable |
| Locking options description: | Padlocking in OFF position |
| Connections - terminals: | Power supply: tunnel type terminals 1 cable(s) 0.5...10 mm² rigid without cable endInput: tunnel type terminals 1 cable(s) 0.5...10 mm² rigid without cable endOutput: tunnel type terminals 2 cable(s) 0.5...1.5 mm² rigid without cable endOutput: tunnel type terminals 1 cable(s) 0.5...2.5 mm² rigid without cable endPower supply: tunnel type terminals 1 cable(s) 0.5...6 mm² flexible without cable endInput: tunnel type terminals 1 cable(s) 0.5...6 mm² flexible without cable endOutput: tunnel type terminals 2 cable(s) 0.5...1.5 mm² flexible without cable endOutput: tunnel type terminals 1 cable(s) 0.5...2.5 mm² flexible without cable endPower supply: tunnel type terminals 1 cable(s) 0.5...4 mm² flexible with cable endInput: tunnel type terminals 1 cable(s) 0.5...4 mm² flexible with cable endOutput: tunnel type terminals 2 cable(s) 0.5...1.5 mm² flexible with cable endOutput: tunnel type terminals 1 cable(s) 0.5...1.5 mm² flexible with cable endPower supply: tunnel type terminals 2 cable(s) 0.5...2.5 mm² rigid without cable endInput: tunnel type terminals 2 cable(s) 0.5...2.5 mm² rigid without cable endPower supply: tunnel type terminals 2 cable(s) 0.5...2.5 mm² flexible without cable endInput: tunnel type terminals 2 cable(s) 0.5...2.5 mm² flexible without cable endPower supply: tunnel type terminals 2 cable(s) 0.5...2.5 mm² flexible with cable endInput: tunnel type terminals 2 cable(s) 0.5...2.5 mm² flexible with cable end |
| Wire stripping length: | Power supply: 10 mm for bottom connectionInput: 10 mm for bottom connectionOutput: 8 mm for top connection |
| Tightening torque: | Power supply: 1 N.mInput: 1 N.mAuxiliary output: 0.7 N.m |
| Range compatibility: | Acti 9 iC60Acti 9 iC65 iMDU voltage adaptor |
| Product compatibility: | 1P + N iC602P iC601P iC601P iC652P iC65 iMDU |
| Market segment: | ResidentialSmall commercial |
| Compatibility code: | RCA iC60 |
| IP degree of protection: | IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529 |
|---|---|
| Pollution degree: | 3 conforming to IEC 60947 |
| Overvoltage category: | II |
| Tropicalisation: | 2 |
| Relative humidity: | 93 % at 40 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -25...60 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480097942 |
|---|
