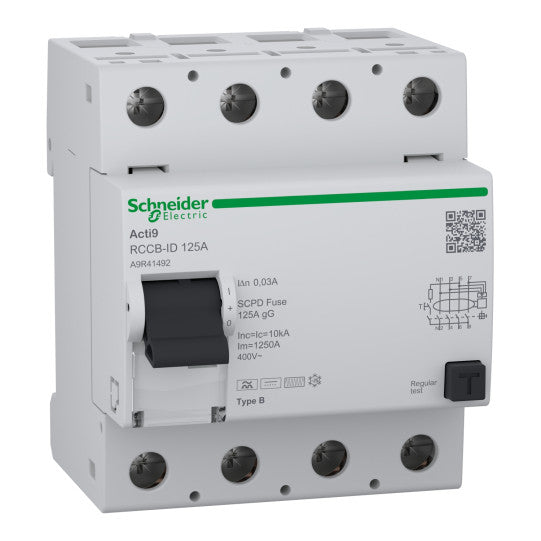

Schneider Electric SCHNEIDER Acti9 RCCB-ID - residual current circuit breaker - 4P - 125A Type B- 30mA - A9R41492
Schneider Electric SCHNEIDER Acti9 RCCB-ID - residual current circuit breaker - 4P - 125A Type B- 30mA - A9R41492

Acti9 RCCB-ID - residual current circuit breaker - 4P - 125A Type B- 30mA - A9R41492

SKU : A9R41492

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

Acti9 RCCB-ID - residual current circuit breaker - 4P - 125A Type B- 30mA - A9R41492

DESCRIPTION

Functionality and Installation This 4P residual current circuit breaker (RCCB), designed for a rated current of 125A and a sensitivity of 30mA to ground leakage, ensures optimal service continuity thanks to its resistance to DC components. It is intended for low-voltage panels (TGBT, distribution boards, etc.).
Installation Benefits Easy to install, it mounts on a DIN rail and offers a compact format at 125A.
Compliance with Standards This device meets IEC/EN 60947-1 and -3, IEC/EN 61008-1 and -2-1 standards. It has VDE and CE certifications. Its protection rating is IP20, reaching IP40 when installed in a modular enclosure compliant with IEC/EN 60529.
Did you know? It is compatible with NG125 and C120 circuit breakers for optimal protection.
Range Acti9
Product Name Acti 9 RCCB-ID
Product Type Residual Current Circuit Breaker
Number of Poles 4P
Neutral Pole Position Left
Rated Operational Current 125 A
Network Type AC
Differential Sensitivity 30 mA
Differential Protection Class Type B
Network Frequency 50 Hz
Rated Operational Voltage 400 V AC 50 Hz
Rated Insulation Voltage 400 V AC 50 Hz
Rated Impulse Withstand Voltage 4 kV
Installation Mode Fixed/Withdrawable
Mounting Support 35 mm DIN rail
Dimensions (H x W x D) 86 mm x 72 mm x 76 mm
Weight 500 g
Standards IEC/EN 61008-1, IEC/EN 61008-2-1, CEI/EN 62423
Certifications CE, VDE
Protection Rating IP20 (IP40 in modular enclosure)
Operating Temperature -25 to 40 °C
Storage Temperature -40 to 60 °C
Code EAN: 3606486869062
