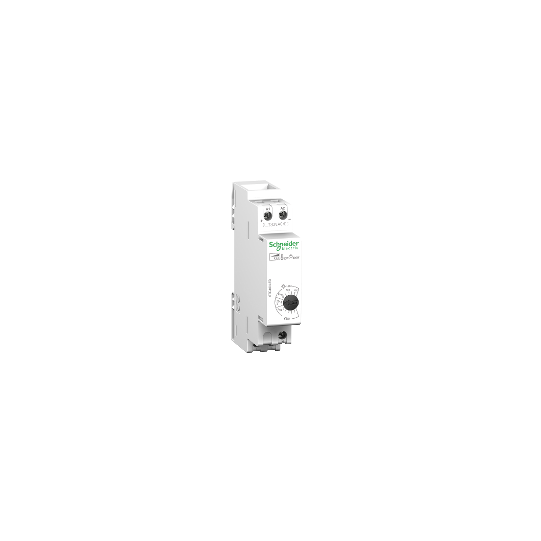

Acti9 - STD400LED DIN universal dimmer - CCTDD20016

SKU : CCTDD20016

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

Acti9 - STD400LED DIN universal dimmer - CCTDD20016

DESCRIPTION

Range of product: Acti 9
Range: Acti 9
Product name: Acti 9 STD
Product or component type: Remote control dimmer
Device short name: STD
Function available: Automatic load type detection
Device application: Building
Load type: halogen lamp: incandescent lamp: fluocompact lamp, dimmable: LED lamp, dimmable: low voltage halogen lamp with electronic transformer: low voltage halogen lamp with ferromagnetic transformer:
Control type: Local control: push-buttonRemote control: push-button
Power consumption in VA: 0.8 VA
Thermal losses: 3 W
[Ue] rated operational voltage: 230 V AC - 15...10 % at 50 Hz
Input voltage: 8...230 V AC/DC
Protection type: Electronic overload protectionElectronic over temperature protection
Mounting support: DIN rail
9 mm pitches: 2
Connected auxiliaries: Maximum 10 auxiliary push-buttons without light indication, distance
Dimmer type: Dimmer with memory
Height: 85 mm
Width: 18 mm
Depth: 60 mm
Product weight: 65 g
Compatibility code: STD400LED DIN
Market segment: Small commercial
IP degree of protection: IP20
Standards: EN 60669-2-1EN 60669-1
Directives: 2006/95/EC - low voltage directive2004/108/EC - electromagnetic compatibility
Ambient air temperature for operation: -30...50 °C
Ambient air temperature for storage: -20...70 °C
Sustainable offer status: Green Premium productREACh Regulation
Code EAN: 3606480769245
