Schneider Electric Acti 9 Acti9 THP1+ 1C (24h/7d) programmable thermostat - CCT15834
Schneider Electric Acti 9 Acti9 THP1+ 1C (24h/7d) programmable thermostat - CCT15834

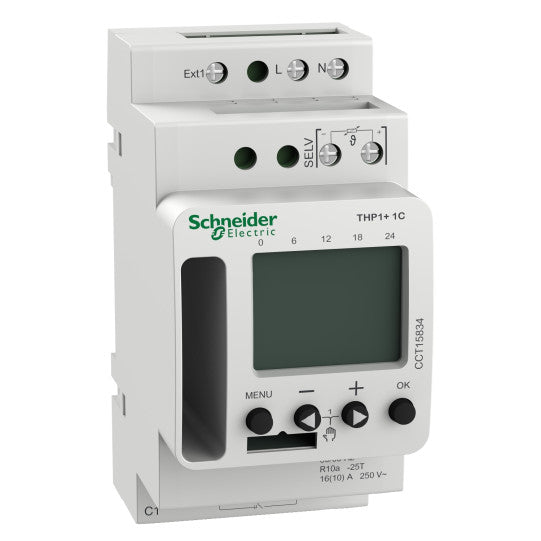

Acti9 THP1+ 1C (24h/7d) programmable thermostat - CCT15834

SKU : CCT15834

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

Acti9 THP1+ 1C (24h/7d) programmable thermostat - CCT15834

DESCRIPTION

Range: Acti 9
Product name: Acti 9 THP
Device short name: THP1
Product or component type: Programmable thermostat
Device application: Temperature control
Number of channels: 1
User language: EnglishFrenchGermanPolishDutchCzechRomanianSpanishDanishNorwegianSwedishFinnishHungarianItalianSloveneCroatianSerbianBulgarian
Maximum power consumption in W: 0.8 W standby
[Ue] rated operational voltage: 230 V AC +10 % -15 % at 50/60 Hz
Maximum switching current: 2 A - 250 V AC pf = 0.610 A - 250 V AC pf = 1
Minimum switching current: 10 mA 230 V AC100 mA 24 V AC/DC
Electrical insulation class: Class II
Control type: 4 x push-button
Operating mode: Frost: 0...20 °CComfort: 10...30 °CReduced: 0...30 °C
Contacts type and composition: C/O
Accuracy: +/- 0.25 s/day 25 °C
Maximum number of switchings: 42
Function available: External input for overrideCode lock functionHoliday schedulesAutomatic winter/summer time changeoverOffset adjusts calibration for temperature for wall balanceOn/off permanent switchingSwitch preselection
Backup time: 10 years
Temperature probe type: NTC
Display type: LCD
Connections - terminals: Screw terminals - 2 x 0.5...2 x 2.5 mm² - solid or flexibleScrew terminals - 1 x 2.5 mm² - solid or flexible with sleeve
Mounting support: TH35 DIN rail conforming to EN 60715
Height: 92.6 mm
Width: 45 mm
Depth: 66.7 mm
Product weight: 150 g
Marking: CE
Overvoltage category: Class 3
Compatibility code: THP1+ 1C
Standards: EN 60730-2-9:2010
Ambient air temperature for operation: -25...55 °C
Ambient air temperature for storage: -30...70 °C
Relative humidity: 90 %, non-condensing
IP degree of protection: IP20
Sustainable offer status: Green Premium productREACh Regulation
Code EAN: 3606489524623
