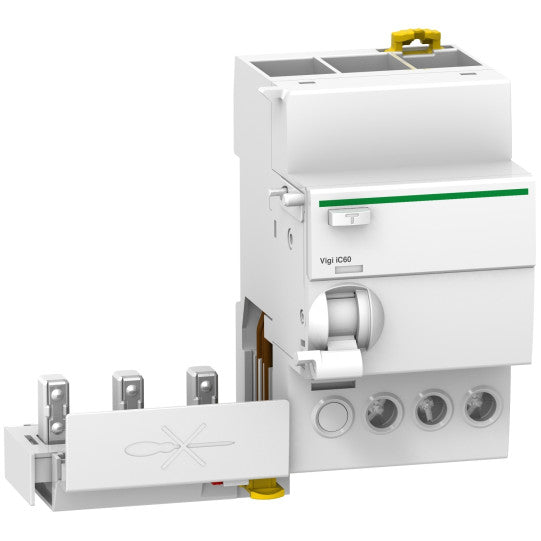

Schneider Electric Acti 9 Acti9 Vigi - earth leakage add-on-block - 3P - 25A - 30mA - AC type - A9Q81325
Schneider Electric Acti 9 Acti9 Vigi - earth leakage add-on-block - 3P - 25A - 30mA - AC type - A9Q81325

Acti9 Vigi - earth leakage add-on-block - 3P - 25A - 30mA - AC type - A9Q81325

SKU : A9Q81325

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

Acti9 Vigi - earth leakage add-on-block - 3P - 25A - 30mA - AC type - A9Q81325

DESCRIPTION

Range: Acti 9
Product or component type: Add-on residual current devices
Device short name: Vigi iC60
Poles description: 3P
[In] rated current: 25 A
Earth-leakage sensitivity: 30 mA
Earth-leakage protection time delay: Instantaneous
Earth-leakage protection class: Type AC
Network type: AC
Network frequency: 50/60 Hz
[Ue] rated operational voltage: 230 V AC 50/60 Hz conforming to EN/IEC 61009-1
Standards: EN 61009EN 61009-2-1
Quality labels: NFEACCEBECIMQ
9 mm pitches: 6
Device location in system: Outgoer
Residual current tripping technology: Voltage independent
[Ui] rated insulation voltage: 500 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60947-2
Range compatibility: Acti 9 iC60
Product compatibility: Single terminal
Local signalling: Trip indicator
Mounting mode: Clip-on
Mounting support: DIN rail
Electrical connection to mcb: Plug in
Height: 91 mm
Width: 54 mm
Depth: 73.5 mm
Product weight: 210 g
Connections - terminals: Tunnel type terminal downside for 1 cable(s) 1...25 mm² rigid without cable endTunnel type terminal downside for 1 cable(s) 1...16 mm² flexible without cable endTunnel type terminal downside for 1 cable(s) 1...16 mm² flexible with cable end
Wire stripping length: 14 mm for bottom connection
Tightening torque: 2 N.m bottom
IP degree of protection: IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529
Pollution degree: 3 conforming to IEC 60947-2
Electromagnetic compatibility: 8/20 µs impulse withstand, 250 A conforming to IEC 61009-1
Ambient air temperature for operation: -5...60 °C
Ambient air temperature for storage: -40...85 °C
Sustainable offer status: Green Premium productREACh Regulation
Code EAN: 3606481304667
