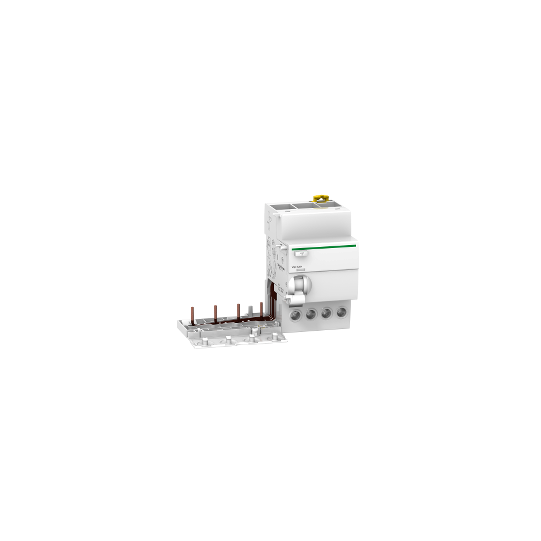

Schneider Electric Acti 9 Acti9 Vigi Ic60 - Differential Circuit Breaker -4P 25A 30Ma A (A9V51425) - A9V51425
Schneider Electric Acti 9 Acti9 Vigi Ic60 - Differential Circuit Breaker -4P 25A 30Ma A (A9V51425) - A9V51425

Acti9 Vigi Ic60 - Differential Circuit Breaker - 4P 25A 30Ma A (A9V51425) - A9V51425

SKU : A9V51425

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

Acti9 Vigi Ic60 - Differential Circuit Breaker -4P 25A 30Ma A (A9V51425) - A9V51425

DESCRIPTION

Range: Acti 9
Product or component type: Add-on residual current devices
Device short name: Vigi iC60
Poles description: 4P
[In] rated current: 25 A
Earth-leakage sensitivity: 30 mA
Earth-leakage protection time delay: Instantaneous
Earth-leakage protection class: Class A
Network type: AC
Network frequency: 50/60 Hz
[Ue] rated operational voltage: 400 V AC 50/60 Hz conforming to EN 61009-1400/415 V AC 50/60 Hz conforming to IEC 61009-1
Standards: EN 61009-1IEC 61009-1
9 mm pitches: 6
Range compatibility: Acti 9 iC60Acti 9 Reflex iC60
Device location in system: Outgoer
Overvoltage protection: Without
Residual current tripping technology: Voltage independent
[Ui] rated insulation voltage: 500 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60947-2
Local signalling: Trip indicator
Mounting mode: Clip-on
Mounting support: DIN rail
Electrical connection to mcb: By screws
Comb busbar distribution block compatibility: Bottom
Height: 91 mm
Width: 54 mm
Depth: 73.5 mm
Product weight: 0.245 kg
Colour: White
Connections - terminals: Tunnel type terminal downside 1 cable(s) 1...25 mm² rigid without cable endTunnel type terminal downside 1 cable(s) 1...16 mm² flexible without cable endTunnel type terminal downside 1 cable(s) 1...16 mm² flexible with cable end
Wire stripping length: 14 mm (bottom)
Tightening torque: 2 N.m (bottom)
Product compatibility: Single terminal
IP degree of protection: IP20
Pollution degree: 3 conforming to IEC 60947-2
Electromagnetic compatibility: 8/20 µs impulse withstand 250 A conforming to IEC 61009-1
Ambient air temperature for operation: -25...60 °C
Ambient air temperature for storage: -40...85 °C
Warranty period: 18 months
Sustainable offer status: Green Premium productRoHS (date code: YYWW)
Code EAN: 3606480374609
Contexte:

Acti 9 Reflex iC60 DIN rail integrated control circuit breaker offers absolute safety and enhanced continuity of service with:

  • VisiSafe for entirely secure operation and maintenance operations on circuits.
  • Class-2 insulation: permanent safety for operators and non-qualified personnel.
  • VisiTrip for rapid detection of faulty outgoers and reduced intervention times.
  • Direct interface with a PLC thanks to integrated electrical auxiliaries for maximum compatibility with Building Management Systems (BMS).
  • Integrated padlocking facility offering maximum safety for maintenance operations.
  • Add-on Residual Current Devices (RCDs) from the Acti 9 range, entirely immune to interference: enhanced continuity of service, particularly in polluted networks and environments.
  • Integrated remote control with three modes of operation for maximum flexibility and upgradeability of the electrical installation.

Technical data

  • Rated current: 10, 16, 25, 40 and 63 A
  • Breaking capacity: 10 kA for the Reflex iC60 N version and 15 kA for the Reflex iC60 H version
  • Tripping curves: B, C, D
  • Compliance with standard IEC/EN 60947-2, certified by official national bodies
  • Complete coordination with the RCDsof the Acti 9 range and the Compact NSX MCCBs
  • Suitability for isolation in compliance with industrial standard IEC/EN 60947
  • Voltage rating: up to 400 Vac, insulation voltage: 500 V
  • Add-on residual current devices (optional): Vigi iC60 and Quick Vigi
  • Integrated auxiliaries: potential-free contacts for status and operation (OF and SD)
  • Auxiliaries (optional): 24/48V DC-AC power adapter
