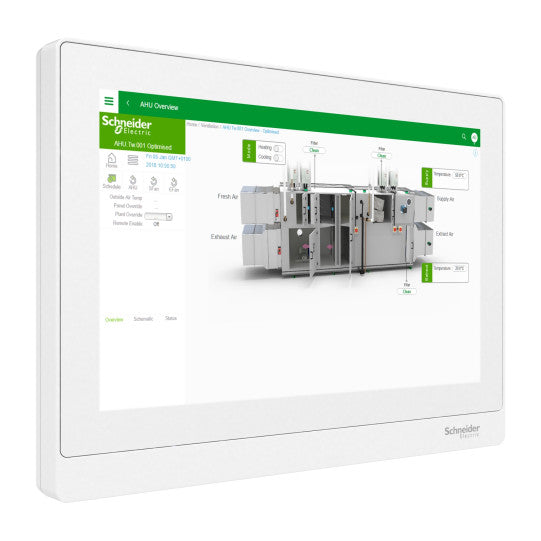

Schneider Electric SCHNEIDER Advanced display, SpaceLogic HMI, v3, for AS/AS-B/AS-P, high-resolution display 10,1", IP54, 24 VCA, CC - SXWADBUND10013
Schneider Electric SCHNEIDER Advanced display, SpaceLogic HMI, v3, for AS/AS-B/AS-P, high-resolution display 10,1", IP54, 24 VCA, CC - SXWADBUND10013

Advanced display, SpaceLogic HMI, v3, for AS/AS-B/AS-P, high-resolution display 10,1", IP54, 24 VCA, CC - SXWADBUND10013

SKU : SXWADBUND10013

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

Advanced display, SpaceLogic HMI, v3, for AS/AS-B/AS-P, high-resolution display 10,1", IP54, 24 VCA, CC - SXWADBUND10013

DESCRIPTION

Operating system : Android 8.1
Current consumption : 1.27 A
Flame retardance : UL94-V0
Width : 258 mm
Mounting mode : Panel-mounted
Product certifications :
Embedding depth : 15.2 mm
Net weight : 0.933 kg
Product or component type : HMI
Height : 195.6 mm
Colour : White
Enclosure material : ABS/PC
Range : SpaceLogic
[In] rated current : 1 A
Ambient air temperature for storage : -20?60 °C
Depth : 25 mm
Display type : TFT LCD touchscreen
Display size : 10.1 inch
Ambient air temperature for operation : 0?40 °C
Display resolution : 1280 x 800 pixels
Communication network type : IEEE 802.11 b/g/n at 2.4 GHz
[Us] rated supply voltage :
Range compatibility :
Standards :
EN 60950-1: 2006+A11
Relative humidity : 0?95 % RH, non-condensing
Number of port : 1, connector type
Processor name : Intel Celeron N3350 dual core at 1.1 GHz
Memory type : 2 GB RAM
Communication port protocol : USBNet
Complementary Supply : External power supply
Environment : IP degree of protection
Code EAN: 3606487191735
