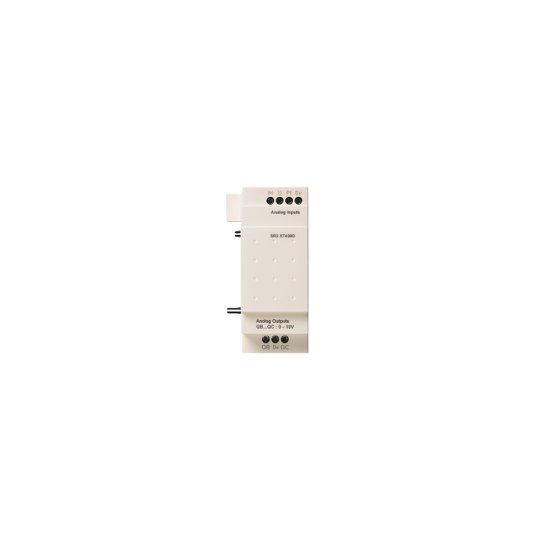

Schneider Electric Zelio Logic analogue I/O extension module - 4 I O - 24 V DC - for Zelio Logic - SR3XT43BD
Schneider Electric Zelio Logic analogue I/O extension module - 4 I O - 24 V DC - for Zelio Logic - SR3XT43BD

analogue I/O extension module - 4 I O - 24 V DC - for Zelio Logic - SR3XT43BD

SKU : SR3XT43BD

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

analogue I/O extension module - 4 I O - 24 V DC - for Zelio Logic - SR3XT43BD

DESCRIPTION

Range of product: Zelio Logic
Product or component type: Analogue I/O extension module
Analogue input number: 2
Analogue input type: Common mode
Analogue input range: 0...10 V0...20 mA-25...125 °C
Temperature probe type: Pt 100, 3-wire conforming to IEC 751
Maximum permissible voltage: 30 V for analogue input circuit
[Imp] maximum permanent current: 30 mA for analogue input circuit
Analogue input resolution: 10 bits on the input range
Input impedance: 18 kOhm, input range: 0...10 V for analogue input circuit247 Ohm, input range: 0...20 mA for analogue input circuit
Analogue output number: 2
Analogue output range: 0...10 V
Analogue output resolution: 10 bits on the output range
Load type: Resistive load for analogue output
Maximum load current: 10 mA for analogue output
Short-circuit protection: With analogue output
LSB value: 0.15 °C, - 25...125 °C for analogue input circuit20 µA, 0...20 mA for analogue input circuit9.8 mV, 0...10 V for analogue input circuit9.8 mV, 0...10 V for analogue output
Conversion time: Smart relay cycle time for analogue input circuitSmart relay cycle time for analogue output
Conversion error: +/- 1 % of the full scale value, input range: 0...10 V (25 °C) for analogue output+/- 1 % of the full scale value, input range: 0...10 V (55 °C) for analogue output+/- 1 %, input range: 0...10 V (25 °C) for analogue input circuit+/- 1 %, input range: 0...10 V (55 °C) for analogue input circuit+/- 1 %, input range: 0...20 mA (25 °C) for analogue input circuit+/- 1 %, input range: 0...20 mA (55 °C) for analogue input circuit+/- 1.5 °C, input range: - 25...125 °C (25 °C) for analogue input circuit+/- 1.5 °C, input range: - 25...125 °C (55 °C) for analogue input circuit
Repeat accuracy:
Operating distance: 10 m with screened cable for analogue input circuit10 m with screened cable for analogue output
Reverse polarity protection: Analogue input circuit: with
Connections - terminals: Screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) semi-solidScrew terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) solidScrew terminals, 2 x 0.25...2 x 1.5 mm² (AWG 23...AWG 16) solidScrew terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable endScrew terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end
Tightening torque: 0.5 N.m
Product weight: 0.11 kg
Product certifications: GOSTULC-TickCSA
Standards: EN/IEC 61000-4-12EN/IEC 61000-4-5EN/IEC 61000-4-3EN/IEC 61000-4-4 level 3EN/IEC 61000-4-6 level 3EN/IEC 61000-4-2 level 3EN/IEC 60068-2-6 FcEN/IEC 61000-4-11EN/IEC 60068-2-27 Ea
IP degree of protection: IP20 (terminal block) conforming to IEC 60529IP40 (front panel) conforming to IEC 60529
Environmental characteristic: EMC directive conforming to EN/IEC 61000-6-2EMC directive conforming to EN/IEC 61000-6-3EMC directive conforming to EN/IEC 61000-6-4EMC directive conforming to EN/IEC 61131-2 zone BLow voltage directive conforming to EN/IEC 61131-2
Disturbance radiated/conducted: Class B conforming to EN 55022-11 group 1
Pollution degree: 2 conforming to EN/IEC 61131-2
Ambient air temperature for operation: -20...40 °C conforming to IEC 60068-2-1 and IEC 60068-2-2-20...55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2
Ambient air temperature for storage: -40...70 °C
Operating altitude: 2000 m
Maximum altitude transport: 3048 m
Relative humidity: 95 % without condensation or dripping water
Sustainable offer status: Green Premium productREACh Regulation
Code EAN: 3389119203968
