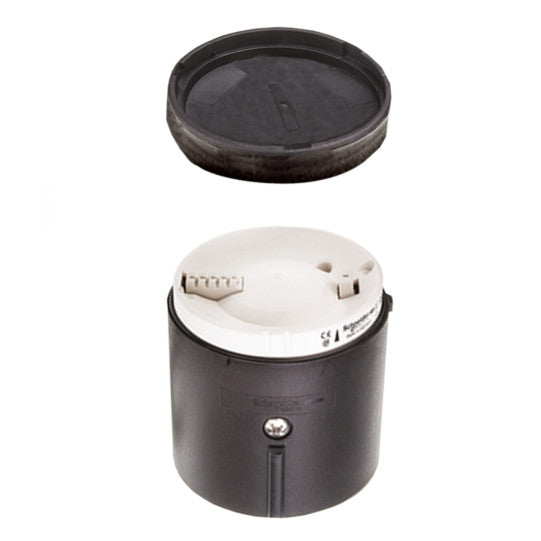

Schneider Electric SCHNEIDER Base unit + cover for modular tower lights, plastic, black, Ø70, AS-i connection, bottom entry, pre-cabled, M12 connector - XVBC21B
Schneider Electric SCHNEIDER Base unit + cover for modular tower lights, plastic, black, Ø70, AS-i connection, bottom entry, pre-cabled, M12 connector - XVBC21B

Base unit + cover for modular tower lights, plastic, black, Ø70, AS-i connection, bottom entry, pre-cabled, M12 connector - XVBC21B

SKU : XVBC21B

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

Base unit + cover for modular tower lights, plastic, black, Ø70, AS-i connection, bottom entry, pre-cabled, M12 connector - XVBC21B

DESCRIPTION

Range of product: Harmony XVB Universal
Product or component type: Base unit with cover
Component name: XVBC
Range compatibility: AS-Interface cabling system
Material: Glass reinforced polyamide: base unitPolycarbonate: cover unit
Mounting diameter: 70 mm
[Us] rated supply voltage: External: 19.2...30 VAS-Interface line: 24...31.6 V
Current consumption: 250 mA under load via AS-Interface line30 mA under load external30 mA no load
Actuator sensor interface profile [AS-i]: S.7.F
Electrical connection: 1 remote connector M12, cable length: 1 m for AS-Interface line
Cable entry: Side entry
Assembly style: Customer assembly, up to 5 units
[Ui] rated insulation voltage: 250 V conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage: 4 kV conforming to IEC 60947-1
Terminals description ISO n°1: (COM-4)PW(COM-2)PW(COM-3)PW(COM-1)PW(GND)GROUND(COM-5)PW
Product weight: 0.3 kg
Product certifications: CSAAS-Interface No 25701
Standards: EN/IEC 60947-5-1
Protective treatment: TC
Ambient air temperature for storage: -20...70 °C
Ambient air temperature for operation: -10...50 °C
Shock resistance: 25 gn conforming to IEC 60068-2-27
Vibration resistance: 5 gn conforming to IEC 60068-2-6
Overvoltage category: Class I conforming to IEC 60536
IP degree of protection: IP65 conforming to IEC 60529IP65 conforming to NF C 20-010
NEMA degree of protection: NEMA 4X conforming to UL 508 (indoor)
Sustainable offer status: Green Premium productREACh Regulation
Code EAN: 3389110421002
