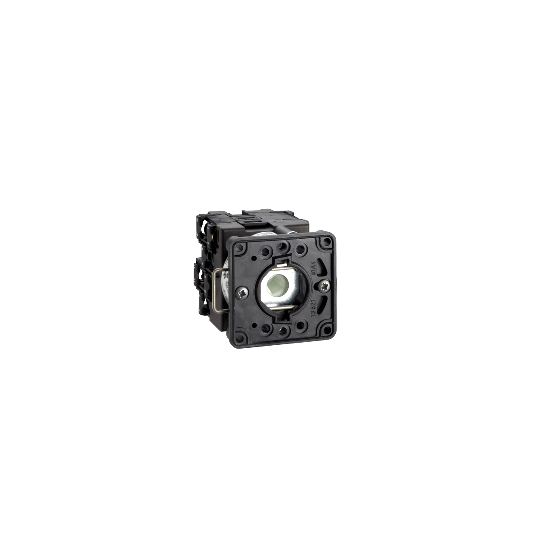

Schneider Electric SCHNEIDER body for stepping switch - 2-pole - 45° - 12 A - for Ø 22 mm - K1M016Q
Schneider Electric SCHNEIDER body for stepping switch - 2-pole - 45° - 12 A - for Ø 22 mm - K1M016Q

body for stepping switch - 2-pole - 45° - 12 A - for Ø 22 mm - K1M016Q

SKU : K1M016Q

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

body for stepping switch - 2-pole - 45° - 12 A - for Ø 22 mm - K1M016Q

DESCRIPTION

Range of product: Harmony K
Product or component type: Cam switch body
Component name: K1
[Ith] conventional free air thermal current: 12 A
Sub-assembly composition: Contact blocks + fixing plate
Cam switch function: Stepping switch
Off position: With Off position
Poles description: 2P
Switching positions: Right: 0° - 45° - 90° - 135° - 180° - 225° - 270°
Mounting location: Front
Fixing mode: Ø 22 mm hole
Bezel material: Plastic
Number of steps: 6
Switching angle: 45 °
[Ui] rated insulation voltage: 690 V (pollution degree 3) conforming to IEC 60947-1
[Ithe] conventional enclosed thermal current: 10 A
Rated operational power in W: 10500 W AC-21, 500 - 660 V 3 phases conforming to IEC 947-31100 W AC-3, 230 V 3 phases conforming to IEC 947-31500 W AC-23A, 230 V 3 phases conforming to IEC 947-31500 W AC-3, 400 V 1 phase conforming to IEC 947-31500 W AC-3, 400 V 3 phases conforming to IEC 947-31500 W AC-3, 500 V 3 phases conforming to IEC 947-31500 W AC-3, 690 V 3 phases conforming to IEC 947-32200 W AC-23A, 400 V 3 phases conforming to IEC 947-32200 W AC-23A, 500 V 3 phases conforming to IEC 947-32200 W AC-23A, 690 V 3 phases conforming to IEC 947-34800 W AC-21, 230 V 3 phases conforming to IEC 947-3600 W AC-3, 230 V 1 phase conforming to IEC 947-38300 W AC-21, 400 V 3 phases conforming to IEC 947-3
[Ie] rated operational current AC: 1.8 A at 690 V AC-3 3 phases conforming to IEC 947-32.8 A at 500 V AC-3 3 phases conforming to IEC 947-32.8 A at 690 V AC-23A 3 phases conforming to IEC 947-33.3 A at 400 V AC-3 3 phases conforming to IEC 947-33.8 A at 500 V AC-23A 3 phases conforming to IEC 947-34.6 A at 230 V AC-3 3 phases conforming to IEC 947-34.8 A at 400 V AC-23A 3 phases conforming to IEC 947-35.6 A at 230 V AC-23A 3 phases conforming to IEC 947-31 A at 500 V AC-15 conforming to IEC 947-5-12 A at 400 V AC-15 conforming to IEC 947-5-13 A at 230 V AC-15 conforming to IEC 947-5-1
Electrical durability: 1000000 cycles AC-151000000 cycles AC-21500000 cycles AC-23500000 cycles AC-3
Maximum operating rate: 2.5 cyc/mn AC-212.5 cyc/mn AC-232.5 cyc/mn AC-38.333 cyc/mn AC-15
Short-circuit current: 10000 A
Short-circuit protection: 16 A cartridge fuse, type gG
[Uimp] rated impulse withstand voltage: 4 kV in isolating function6 kV conforming to IEC 947-1
Contact operation: Slow-break
Positive opening: With
Electrical connection: Captive screw clamp terminals flexible, clamping capacity: 2 x 1.5 mm²Captive screw clamp terminals solid, clamping capacity: 1 x 2.5 mm²
Mechanical durability: 1000000 cycles
Product weight: 0.225 kg
Compatibility code: K1M
Standards: EN/IEC 60947-3 for power circuitEN/IEC 60947-5-1 for control circuitCENELEC EN 50013
Product certifications: CSA 240 V 1 hp 1 phaseCSA 240 V 3 hp 3 phases 2 -pole(s)UL 240 V 1 hp 3 phasesUL 240 V 0.33 hp 1 phase 2 -pole(s)
Protective treatment: TC
Ambient air temperature for operation: -25...55 °C
Ambient air temperature for storage: -40...70 °C
Shock resistance: 30 gn conforming to IEC 68-2-27
Vibration resistance: 5 gn conforming to IEC 68-2-6 (f = 10...150 Hz)
Overvoltage category: Class II conforming to IEC 536Class II conforming to NF C 20-030
Sustainable offer status: Green Premium productREACh Regulation
Code EAN: 3389110442533
