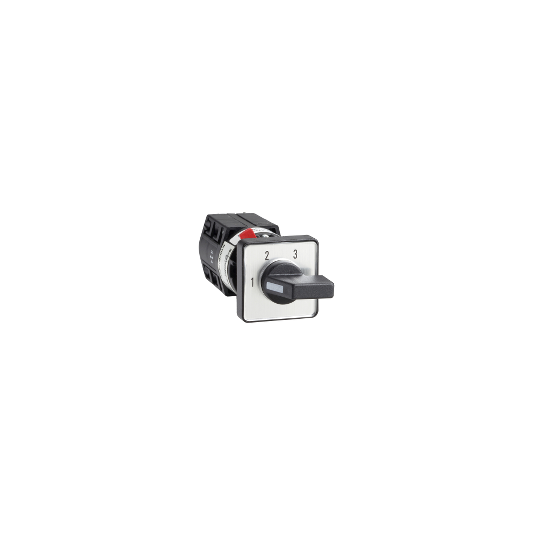

Schneider Electric SCHNEIDER cam stepping switch - 1 pole - 60° - 10 A - for Ø 16 or 22 mm - K10C003NCH
Schneider Electric SCHNEIDER cam stepping switch - 1 pole - 60° - 10 A - for Ø 16 or 22 mm - K10C003NCH

cam stepping switch - 1 pole - 60° - 10 A - for Ø 16 or 22 mm - K10C003NCH

SKU : K10C003NCH

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

cam stepping switch - 1 pole - 60° - 10 A - for Ø 16 or 22 mm - K10C003NCH

DESCRIPTION

Range of product: Harmony K
Product or component type: Complete cam switch
Component name: K10
[Ith] conventional free air thermal current: 10 A
Product mounting: Front mounting
Fixing mode: Ø 16 or 22 mm hole
Cam switch head type: With front plate 30 x 30 mm
Type of operator: Black handle
Rotary handle padlocking: Without
Presentation of legend: With metallic legend, 1 - 2 - 3 black marking
Cam switch function: Stepping switch
Return: Without
Off position: Without Off position
Poles description: 1P
Switching positions: Right: 270° - 330° - 30°
IP degree of protection: Contact block: IP20Operating head: IP65 conforming to IEC 60529
Number of steps: 3
Switching angle: 60 °
[Ui] rated insulation voltage: 440 V (pollution degree 3) conforming to IEC 60947-1
Rated operational power in W: 370 W AC-23A, 110/120 V 1 phase750 W AC-23A, 220/240 V 1 phase
Rated power in hp: 0.33 hp at 110/120 V AC, 1 phase0.75 hp at 220/240 V AC, 1 phase
[Ie] rated operational current AC: 10 A at 400 V AC-110 A at 400 V AC-21A3 A at 240 V AC-156 A at 120 V AC-15
[Ie] rated operational current DC: 10 A at 24 V resistive load0.3 A at 220 V resistive load0.7 A at 110 V resistive load
Electrical durability: 100000000 cycles
Short-circuit protection: 10 A cartridge fuse, type gG
[Uimp] rated impulse withstand voltage: 4 kV conforming to IEC 60947-1
Contact operation: Slow-break
Electrical connection: Captive screw clamp terminals, clamping capacity: 2 x 1.5 mm²
Mechanical durability: 1000000 cycles
CAD overall width: 30 mm
CAD overall height: 30 mm
CAD overall depth: 88 mm
Net weight: 0.045 kg
Compatibility code: K10
Standards: CENELEC EN 50013EN/IEC 60947-3EN/IEC 60947-5-1
Product certifications: CULus
Protective treatment: TC
Ambient air temperature for operation: -20...55 °C
Ambient air temperature for storage: -40...70 °C
Electrical shock protection class: Class II conforming to IEC 60536
REACh Regulation: Free of Substances of Very High Concern above the thresholdREACh free of SVHC
Unit Type of Package 1: PCENumber of Units in Package 1
Code EAN: 3389110076615
