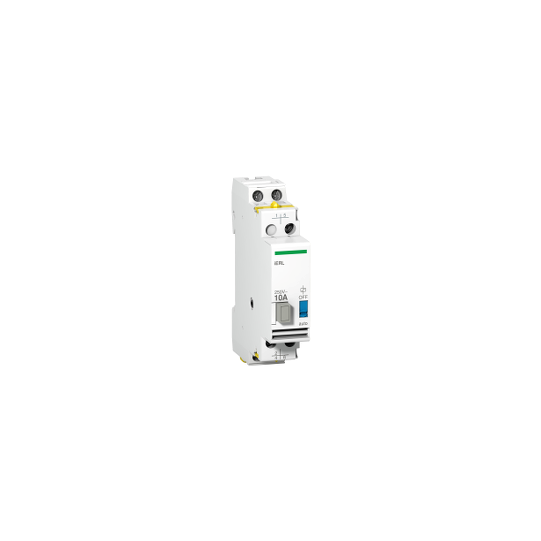

Changeover relay extension iERL 10A 2P Uc 230V-240VAC Ue 250VAC - A9E15539

Name: Changeover relay extension iERL 10A 2P Uc 230V-240VAC Ue 250VAC - A9E15539
Brand: Schneider Electric
SKU: A9E15539
Availability: InStock

SKU : A9E15539

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation

We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE

Estimated Delivery : 26 November - 02 December.

Changeover relay extension iERL 10A 2P Uc 230V-240VAC Ue 250VAC - A9E15539

DESCRIPTION

DESCRIPTION

Range:	Acti 9
Product name:	Acti 9 iERL
Product or component type:	Extension for changeover relay
Device short name:	IERL
Device application:	Extension for changeover relay
Signal contacts composition:	1 C/O + 1 NO
[Uc] control circuit voltage:	230...240 V AC 50/60 Hz

[Ie] rated operational current:	10 A at 230 V AC (cos Phi = 1)
[Ui] rated insulation voltage:	250 V AC
Supply holding power:	8 VA
Supply inrush power:	8 VA
Mounting mode:	Fixed
Mounting support:	35 mm symmetrical DIN rail
9 mm pitches:	2
Height:	88 mm
Width:	18 mm
Depth:	70 mm
Product weight:	0.112 kg
Colour:	White
Electrical durability:	AC-21: 100000 cycles
Connections - terminals:	Tunnel type terminals 0.5...6 mm²Connection by clip
Market segment:	ResidentialSmall commercial
Compatibility code:	IERL

Standards:	NF C 45-250IEC 255
IP degree of protection:	IP20
Ambient air temperature for operation:	-5...55 °C
Ambient air temperature for storage:	-40...70 °C
EU RoHS Directive:	CompliantMercury free

Code EAN:	3606480377358
