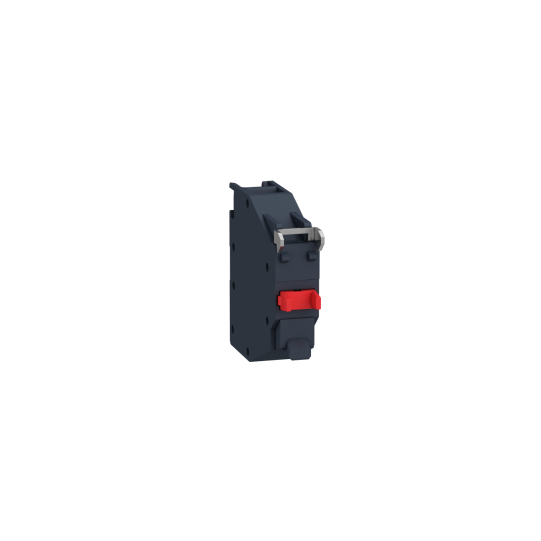

Schneider Electric SCHNEIDER Contact block, Harmony XB4 - ATEX D, single contact, gas protected contact, screw clamp terminals, 1NC - ZBE102GEX
Schneider Electric SCHNEIDER Contact block, Harmony XB4 - ATEX D, single contact, gas protected contact, screw clamp terminals, 1NC - ZBE102GEX

Contact block, Harmony XB4 - ATEX D, single contact, gas protected contact, screw clamp terminals, 1NC - ZBE102GEX

SKU : ZBE102GEX

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

Contact block, Harmony XB4 - ATEX D, single contact, gas protected contact, screw clamp terminals, 1NC - ZBE102GEX

DESCRIPTION

Range of product: Harmony XB4
Product or component type: Contact block
Device short name: ZBE
Sale per indivisible quantity: 1
Contact operation: Standard
Contact block type: Single
Contacts usage: Gas protected contact
Connections - terminals: Screw clamp terminals, 2 x 1.5 mm² without cable endScrew clamp terminals, 1 x 2.5 mm² with cable end
CAD overall width: 38 mm
CAD overall height: 10 mm
CAD overall depth: 42.4 mm
Net weight: 0.019 kg
Marking: Ex db eb IIC Gb
Contacts type and composition: 1 NC
Positive opening: With
Operating travel: 1.688 mm (engagement point)3.271 mm (changing state point)4.424 mm (total travel)
Operating force: 2.873 N
Mechanical durability: 1000000 cycles
Tightening torque: 0.8...1.2 N.m conforming to IEC 60947-1
[Ith] conventional free air thermal current: 10 A conforming to IEC 60947-5-1
[Ui] rated insulation voltage: 415 V
[Ie] rated operational current: 1.9 A at 380 V, AC, A600 conforming to IEC 60947-5-13 A at 240 V, AC, A600 conforming to IEC 60947-5-16 A at 120 V, AC, A600 conforming to IEC 60947-5-10.27 A at 250 V, DC, Q300 conforming to IEC 60947-5-10.55 A at 125 V, DC, Q300 conforming to IEC 60947-5-12.87 A at 24 V, DC, Q300 conforming to IEC 60947-5-1
Mounting of block: Front mounting
Compatibility code: ZBE
Protective treatment: TH
Ambient air temperature for storage: -50...70 °C
Ambient air temperature for operation: -50...75 °C
Standards: UL 60079-31UL 60079-0UL 60079-1ANSI/ISA 12.12.01EN/IEC 60079-0EN/IEC 60079-31CSA C22.2 No 213EN/IEC 60079-1EN/IEC 60079-7
Product certifications: cULus
Environmental characteristic: Hazardous location class I division 2
Total lifecycle Carbon footprint: 0.4 kg CO2 eq.Carbon footprint of the manufacturing phase [A1 to A3]
Unit Type of Package 1: PCENumber of Units in Package 1
Code EAN: 3606489486129
