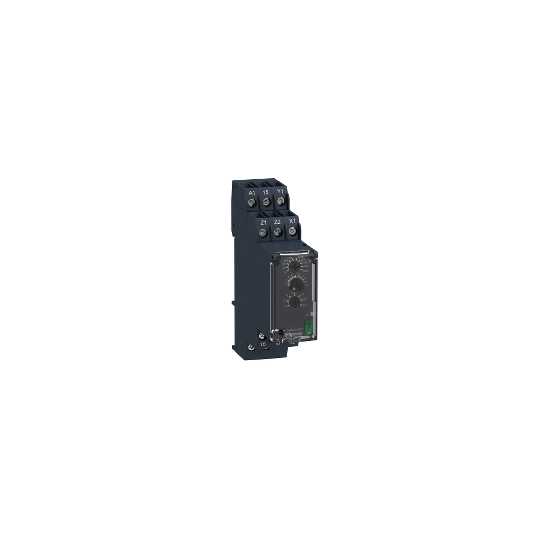

| Contacts type and composition: |
1 C/O timed contact, cadmium free |
| Time delay type: |
Power on-delayOff-delayOn-delay and off-delaySymmetrical flashingInterval |
| Time delay range: |
30...300 s10...100 s3...30 s30...300 min3...30 min0.3...3 s0.05...1 s30...300 h1...10 s3...30 h |
| Control type: |
Rotary knobDiagnostic buttonPotentiometer external |
| [Us] rated supply voltage: |
24...240 V AC/DC 50/60 Hz |
| Input voltage: |
|
| Voltage range: |
0.85...1.1 Us |
| Supply frequency: |
50...60 Hz +/- 5 % |
| Connections - terminals: |
Screw terminals, 1 x 0.5...1 x 3.3 mm² (AWG 20...AWG 12) solid without cable endScrew terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable endScrew terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable endScrew terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end |
| Tightening torque: |
0.6...1 N.m conforming to IEC 60947-1 |
| Housing material: |
Self-extinguishing |
| Repeat accuracy: |
+/- 0.5 % conforming to IEC 61812-1 |
| Temperature drift: |
+/- 0.05 %/°C |
| Voltage drift: |
+/- 0.2 %/V |
| Setting accuracy of time delay: |
+/- 10 % of full scale at 25 °C conforming to IEC 61812-1 |
| Minimum pulse duration: |
100 ms with load in parallel30 ms |
| Insulation resistance: |
100 MOhm at 500 V DC conforming to IEC 60664-1 |
| Reset time: |
120 ms on de-energisation |
| Immunity to microbreaks: |
10 ms |
| Power consumption in VA: |
3 VA at 240 V AC |
| Power consumption in W: |
1.5 W at 240 V DC |
| Switching capacity in VA: |
2000 VA |
| Minimum switching current: |
10 mA at 5 V DC |
| Maximum switching current: |
8 A |
| Maximum switching voltage: |
250 V AC |
| Electrical durability: |
100000 cycles, 8 A at 250 V, AC-1100000 cycles, 2 A at 24 V, DC-1 |
| Mechanical durability: |
10000000 cycles |
| [Uimp] rated impulse withstand voltage: |
5 kV for 1.2...50 µs conforming to IEC 60664-1 |
| Maximum delay response: |
100 ms |
| Creepage distance: |
4 kV/3 conforming to IEC 60664-1 |
| Overvoltage category: |
III conforming to IEC 60664-1 |
| Safety reliability data: |
MTTFd = 205.4 yearsB10d = 190000 |
| Mounting position: |
Any position |
| Mounting support: |
35 mm DIN rail conforming to EN/IEC 60715 |
| Status LED: |
LED backlight green (steady) for dial pointer indicationLED yellow (steady) for output relay energisedLED yellow (fast flashing) for timing in progress and output relay de-energisedLED yellow (slow flashing) for timing in progress and output relay energised |
| Width: |
22.5 mm |
| Net weight: |
0.1 kg |
| Time delay type: |
A, Ac, Act, At, Aw, C, Ct, D, Di, Dit, Diw, Dt, Dw, H, Ht, Hw, W, Wt |
| Contacts type and composition: |
1 C/O |
| Functionality: |
Multifunction |
