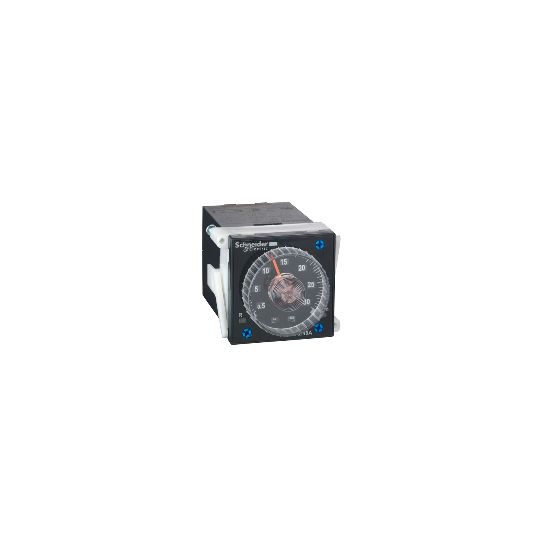

Schneider Electric SCHNEIDER Harmony Time RE48 - Modular Timing Relay, 5 A, 2 CO, 0.2 s...300 h, time delay, 24...240 V AC/DC - RE48AML12MW
Schneider Electric SCHNEIDER Harmony Time RE48 - Modular Timing Relay, 5 A, 2 CO, 0.2 s...300 h, time delay, 24...240 V AC/DC - RE48AML12MW

Harmony Time RE48 - Modular Timing Relay, 5 A, 2 CO, 0.2 s...300 h, time delay, 24...240 V AC/DC - RE48AML12MW

SKU : RE48AML12MW

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

Harmony Time RE48 - Modular Timing Relay, 5 A, 2 CO, 0.2 s...300 h, time delay, 24...240 V AC/DC - RE48AML12MW

DESCRIPTION

Range of product: Harmony Timer Relays
Product or component type: Multifunction relay
Electrical connection: Plug-in sub-base 11 pin(s)
Discrete output type: Relay
Contacts type and composition: 2 C/O timed contacts, AgNi (cadmium free)
Component name: RE48A
Time delay type: Power on-delayIntervalOff-delaySymmetrical flashing
Time delay range: 0.5...30 s5...300 s0.2...12 min0.5...30 h2...120 s0.05...3 s0.2...12 s0.02...1.2 s2...120 min5...300 min0.5...30 min5...300 h2...120 h0.2...12 h
[Us] rated supply voltage: 24...240 V AC/DC 50/60 Hz
Voltage range: 0.85...1.1 Us AC0.9...1.1 Us DC
[In] rated current: 5 A
Contacts type and composition: 2 C/O
Connections - terminals: Screw connectors
Output type: Relay
Product front plate size: 48 x 48 mm
Control type: Selector switch front panel
Housing material: Self-extinguishing
Repeat accuracy: +/- 0.2 % of the maximum setting value conforming to IEC 61812-1
Temperature drift: +/- 0.02 %/°C of the maximum setting value conforming to IEC 61812-1
Voltage drift: +/- 0.2 %/V of the maximum setting value at 48...240 V+/- 1 %/V of the maximum setting value at 24...48 V
Setting accuracy of time delay: +/- 5 % of full scale at 25 °C conforming to IEC 61812-1
Minimum pulse duration: 20 ms
Reset time: 25 ms on de-energisation
Pick up duration: 55 ms
On-load factor: 100 %
Power consumption in VA: 1.1 VA at 24 V4.8 VA at 240 V
Power consumption in W: 0.5 W at 24 V1.7 W at 240 V
Breaking capacity: 1250 VA
Minimum switching current: 100 mA
Maximum switching current: 5 A
Maximum switching voltage: 250 V AC/DC
Electrical durability: 100000 cycles
Mechanical durability: 30000000 cycles
Output voltage: 240 V at 5 A AC-1230 V at 2 A DC-13240 V at 1.5 A AC-15
Marking: CE
Surge withstand: 1 kV differential mode conforming to IEC 61000-4-5 level 32 kV common mode conforming to IEC 61000-4-5 level 3
Mounting support: Base mounted: socketPanel mounted: system supplied with the product
Local signalling: 1 LED (yellow) for output relay stateLED indicator (green) for flashing: relay energised timing in progressLED indicator (green) for on steady: relay energised, no timing in progress
Net weight: 0.14 kg
Time delay type: A, B, C, Di
Functionality: Multifunction
Compatibility code: RE48
Humidity drift: +/- 0.05 %/%RH of the maximum setting value conforming to IEC 61812-1
Immunity to microbreaks: 10 ms
Dielectric strength: 1 kV 1 mA/1 minute conforming to IEC 61812-1
Protection against electric shocks: 4 kV class III conforming to IEC 60664-14 kV class III conforming to IEC 61812-1
Standards: IEC 61812-1EN 50081-1/293/68/EEC89/336/EECEN 50082-1/2IEC 60669-2-373/23/EEC
Product certifications: ULcULusCSAC-Tick
Ambient air temperature for storage: -40...70 °C
Ambient air temperature for operation: -20...50 °C
IP degree of protection: IP40 (housing) conforming to IEC 60529IP50 (front face) conforming to IEC 60529
Vibration resistance: 0.35 mm (f= 10...55 Hz) conforming to IEC 60068-2-6
Relative humidity: 93 % without condensation conforming to IEC 60068-2-3
Resistance to electrostatic discharge: 6 kV in contact conforming to EN/IEC 61000-4-2 level 38 kV in air conforming to EN/IEC 61000-4-2 level 3
Resistance to electromagnetic fields: 10 V/m 26 MHz to 1 GHz conforming to IEC 61000-4-3 level 3
Resistance to fast transients: 2 kV (capacitive connecting clip) conforming to EN/IEC 61000-4-4 level 44 kV (direct) conforming to EN/IEC 61000-4-4 level 4
Immunity to radioelectric fields: 10 V (0.15...80 MHz) conforming to EN/IEC 61000-4-6 level 3
Immunity to voltage dips: 30 % / 10 ms conforming to EN/IEC 61000-4-1160 % / 100 ms conforming to EN/IEC 61000-4-1195 % / 5 s conforming to EN/IEC 61000-4-11
Disturbance radiated/conducted: Class B 0.15...30 MHz conforming to EN 55022 (EN 55011 group 1)
Sustainable offer status: Green Premium productREACh Regulation
Code EAN: 3389110649598
