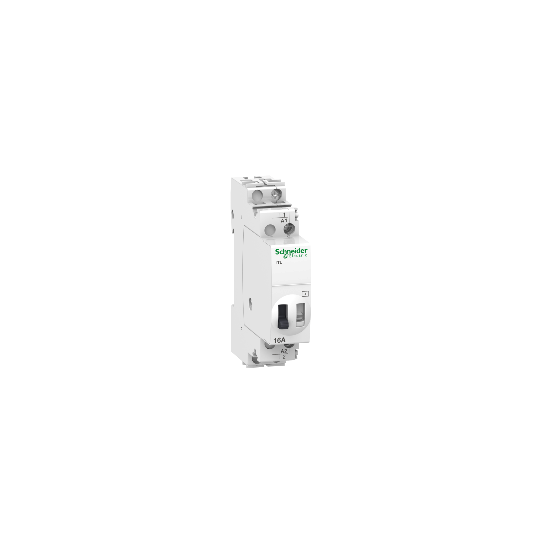

Schneider Electric Acti 9 impulse relay iTL - 1P - 1NO - 16A - coil 12 VAC 50/60Hz- 6 VDC - A9C30011
Schneider Electric Acti 9 impulse relay iTL - 1P - 1NO - 16A - coil 12 VAC 50/60Hz- 6 VDC - A9C30011

impulse relay iTL - 1P - 1NO - 16A - coil 12 VAC 50/60Hz- 6 VDC - A9C30011

SKU : A9C30011

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

impulse relay iTL - 1P - 1NO - 16A - coil 12 VAC 50/60Hz- 6 VDC - A9C30011

DESCRIPTION

Range of product: ITL
Range: Acti9
Product name: Acti9 iTL
Product or component type: Impulse relay
Device short name: ITL
Device application: Standard
Poles description: 1P
Pole contact composition: 1 NO
[In] rated current: 16 A
Network type: AC
[Uc] control circuit voltage: 12 V AC 50/60 Hz6 V DC
Network frequency: 50/60 Hz
[Ue] rated operational voltage: 250 V AC 50/60 Hz
Control type: Coil deconnectionRemote and manual control
Control signal type: Impulse
Switching frequency: 100 switching operations/day5 switching operations/minute
Impulse duration: 50 ms...1 s
Remote control type: Illuminated push-button 3 mA
Local signalling: ON/OFF indication
Mounting mode: Fixed
Mounting support: DIN rail
9 mm pitches: 2
Height: 84 mm
Width: 18 mm
Depth: 60 mm
Electrical durability: AC-21: 200000 cyclesAC-22: 100000 cycles
Connections - terminals: Control circuit: tunnel type terminals 1 cable(s) 0.5...4 mm² rigidControl circuit: tunnel type terminals 1 cable(s) 0.5...4 mm² rigid with cable endControl circuit: tunnel type terminals 1 cable(s) 1...4 mm² flexibleControl circuit: tunnel type terminals 1 cable(s) 1...4 mm² flexible with ferrulePower circuit: tunnel type terminals 1 cable(s) 1.5...4 mm² rigidPower circuit: tunnel type terminals 1 cable(s) 1.5...4 mm² rigid with cable endPower circuit: tunnel type terminals 1 cable(s) 1.5...4 mm² flexiblePower circuit: tunnel type terminals 1 cable(s) 1.5...4 mm² flexible with ferrule
Wire stripping length: 11 mm
Tightening torque: 1 N.m
Range compatibility: iATLm iETL iTL 16
Market segment: Small commercialResidential
Compatibility code: ITL
Standards: EN 669-1EN 669-2-2
Product certifications: GOST
Quality labels: CEBECKEMAIMQVDENF
Noise level: 60 dB
IP degree of protection: IP20 conforming to IEC 60529 (on opening)IP40 conforming to IEC 60529 (in enclosure)
Pollution degree: 3
Tropicalisation: 2
Relative humidity: 95 % at 55 °C
Ambient air temperature for operation: -20...50 °C
Ambient air temperature for storage: -40...70 °C
Sustainable offer status: Green Premium productREACh Regulation
Code EAN: 3606480091858
