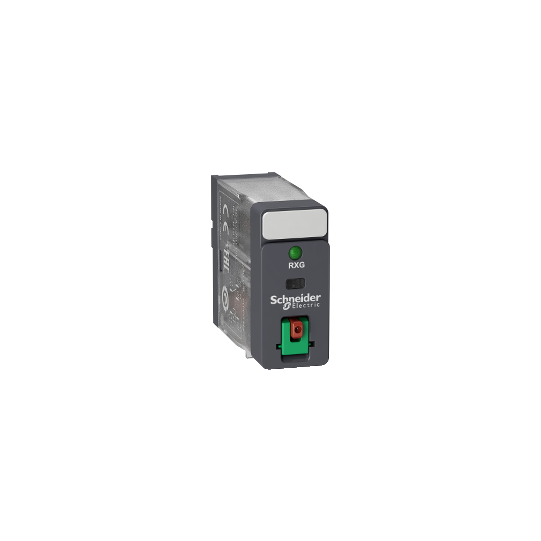

Schneider Electric SCHNEIDER Interface plug-in relay, 10 A, 1 CO, lockable test button, LED, 24 V AC - RXG12B7
Schneider Electric SCHNEIDER Interface plug-in relay, 10 A, 1 CO, lockable test button, LED, 24 V AC - RXG12B7

Interface plug-in relay, 10 A, 1 CO, lockable test button, LED, 24 V AC - RXG12B7

SKU : RXG12B7

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

Interface plug-in relay, 10 A, 1 CO, lockable test button, LED, 24 V AC - RXG12B7

DESCRIPTION

Range of product: Harmony Electromechanical Relays
Series name: Interface relay
Product or component type: Plug-in relay
Device short name: RXG
Contacts type and composition: 1 C/O
[Uc] control circuit voltage: 24 V
[In] rated current: 10 A
Status LED: With
Contacts material: Silver alloy (AgSnO2In2O3)
Contact resistance: 100 mOhm
[Ithe] conventional enclosed thermal current: 10 A at -40...55 °C
[Ie] rated operational current: 10 A at 30 V (DC) conforming to UL10 A at 30 V (DC) conforming to IEC10 A at 250 V (AC) conforming to IEC10 A at 250 V (AC) conforming to UL
Maximum switching voltage: 250 V AC30 V DC
Load current: 10 A at 250 V AC
Maximum switching capacity: 2500 VA
Minimum switching capacity: 500 mW at 100 mA, 5 V DC
Operating rate:
Utilisation coefficient: 20 %
Mechanical durability: 10000000 cycles
Electrical durability: 100000 cycles for NO resistive load at 55 °C100000 cycles for NC resistive load at 55 °C
[Ui] rated insulation voltage: 250 V conforming to IEC300 V conforming to CSA300 V conforming to UL
[Uimp] rated impulse withstand voltage: 6 kV 1.2/50 µs
Dielectric strength: 1000 V AC between contacts with micro disconnection5000 V AC between coil and contact with reinforced insulation
Resistance: 260 Ohm +/- 10 %
Insulation resistance: 1000 MOhm at 500 V DC
Test levels: Level A group mounting
Mounting position: Any position
Average consumption: 0.82 VA 60 Hz
Drop-out voltage threshold: >= 0.3 Uc AC
Control circuit voltage limits: 0.8...1.1 Uc AC
Electrical insulation class: Class F
Operating time: 20 ms
Reset time: 20 ms
[Uc] control circuit voltage: 24 V AC 50/60 Hz
Safety reliability data: B10d = 100000
Colour of cover: Standard
Control type: Lockable test button
Local signalling: Flag
Torque value: 0.8 N.m
Net weight: 0.02 kg
Device presentation: Complete product
Vibration resistance: 3 gn, amplitude = +/- 0.75 mm (f = 10...150 Hz)in operation5 gn, amplitude = +/- 0.75 mm (f = 10...150 Hz)not in operation
IP degree of protection: IP40
Shock resistance: 20 gn in operation100 gn not in operation
Protection category: RT I
Standards: IEC 61810-1CSA C22.2 No 14UL 508
Product certifications: EACCSAULCEDNV-GL
Pollution degree: 2
Overvoltage category: III
Ambient air temperature for storage: -40...85 °C
Ambient air temperature for operation: -40...70 °C
Relative humidity: 10...85 %
Sustainable offer status: Green Premium productREACh Regulation
Unit Type of Package 1: PCENumber of Units in Package 1
Code EAN: 3606480688669
