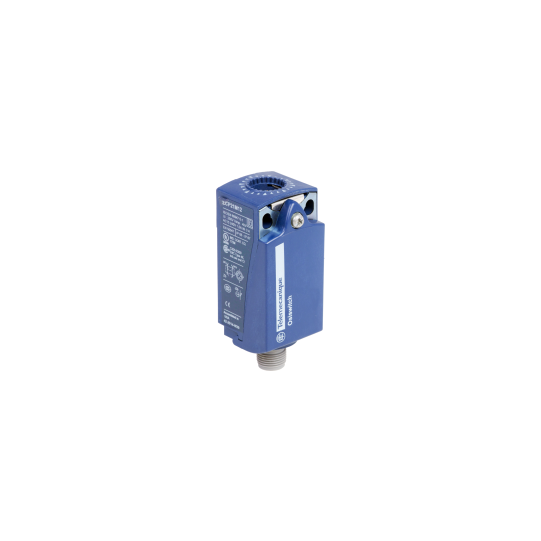

Schneider Electric SCHNEIDER limit switch body ZCP - compact - 1NC+1NO - snap action - M12 4P - ZCP21M12
Schneider Electric SCHNEIDER limit switch body ZCP - compact - 1NC+1NO - snap action - M12 4P - ZCP21M12

limit switch body ZCP - compact - 1NC+1NO - snap action - M12 4P - ZCP21M12

SKU : ZCP21M12

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

limit switch body ZCP - compact - 1NC+1NO - snap action - M12 4P - ZCP21M12

DESCRIPTION

Range of product: Telemecanique Limit switches XC Standard
Series name: Standard compact
Product or component type: Limit switch body
Device short name: ZCP
Design: Compact
Body type: Fixed
Associated head: ZCE63ZCE06ZCE21ZCE24ZCE09ZCE29ZCE67ZCEH0ZCE08ZCE07ZCE10ZCEH2ZCE62ZCE02ZCE11ZCE05ZCE14ZCE64ZCE28ZCE01ZCE66ZCE13ZCE65ZCE27
Body material: Plastic
Number of poles: 2
Contacts type and composition: 1 NC + 1 NO
Contact operation: Snap action
Electrical connection: Male connector M12, 4 pins
Contacts insulation form: Zb
Contacts material: Silver plated contacts
Positive opening: With
Minimum actuation speed: 0.01 m/s
Contact code designation: B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to IEC 60947-5-1 appendix AR300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A
[Ui] rated insulation voltage: 300 V conforming to UL 508500 V (pollution degree 3) conforming to IEC 60947-1300 V conforming to CSA C22.2 No 14
Maximum resistance across terminals: 25 mOhm conforming to IEC 60255-7 category 3
[Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 606646 kV conforming to IEC 60947-1
Short-circuit protection: 10 A cartridge fuse, type gG
[Ie] rated operational current: 3 A at 240 V, AC-15 conforming to IEC 60947-5-1 appendix A0.27 A at 250 V, DC-13 conforming to IEC 60947-5-1 appendix A
[Ithe] conventional enclosed thermal current: 3 A
Electrical durability: 5000000 cycles, DC-13 120 V, 4 W, operating rate 5000000 cycles, DC-13 24 V, 10 W, operating rate 5000000 cycles, DC-13 48 V, 7 W, operating rate
Width: 31 mm
Height: 65 mm
Depth: 30 mm
Net weight: 0.07 kg
Terminals description ISO n°1: (21-22)NC(13-14)NO
Device presentation: Basic element
Compatibility code: ZCP
Product compatibility: XCKP
Ambient air temperature for operation: -25...70 °C
Ambient air temperature for storage: -40...70 °C
Mercury free: YesRoHS exemption information
Unit Type of Package 1: PCENumber of Units in Package 1
Code EAN: 3389110183962
