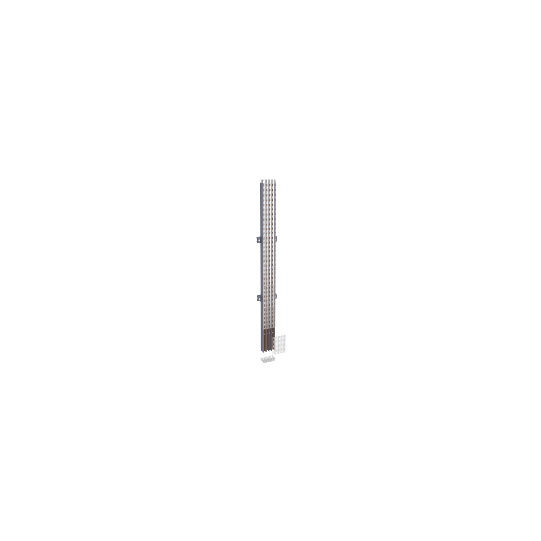

Schneider Electric Linergy Linergy BW - Jeu de barres isolées - 630 A 4P - L=1000 mm (Powerclip) - LVS04124
Schneider Electric Linergy Linergy BW - Jeu de barres isolées - 630 A 4P - L=1000 mm (Powerclip) - LVS04124

Linergy BW - Jeu de barres isolées - 630 A 4P - L=1000 mm (Powerclip) - LVS04124

SKU : LVS04124

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

Linergy BW - Jeu de barres isolées - 630 A 4P - L=1000 mm (Powerclip) - LVS04124

DESCRIPTION

Range: Linergy
Range of product: Linergy
Product or component type: Busbar
Product name: Linergy BW
Range compatibility: PrismaSeT G enclosurePrismaSeT P enclosure
IP degree of protection: IPxx B
Busbar description: Insulated bar
Quantity per set: Set of 1
Poles description: 4P
Installation direction: Vertical, operating position: rear
Enclosure/cubicle description: Cubicle - width 650 mmFloor-standing enclosure - width 600 mmWall-mounted enclosure - width 600 mm
[Ui] rated insulation voltage: 1000 V AC
[Uimp] rated impulse withstand voltage: 8 kV
[Ie] rated operational current: 630 A
[Icw] rated short-time withstand current: 25 kA (1 s)
[Ipk] rated peak withstand current: 52.5 kA
I²t on activation: 625000 kA².s
Permissible current: 630 A
Length: 1000 mm
Height: 85 mm
Depth: 80 mm
Net weight: 16.64 kg
Type of busbar connection: M6 threaded hole
Connection pitch: Connection each 25 mm
Standards: IEC 61439-1IEC 61439-2
Product certifications: ASTA
Mechanical robustness: Seismic tests - 2.5G conforming to IEC 60068-2-57
Sustainable offer status: Green Premium productREACh Regulation
Code EAN: 3606481870193
