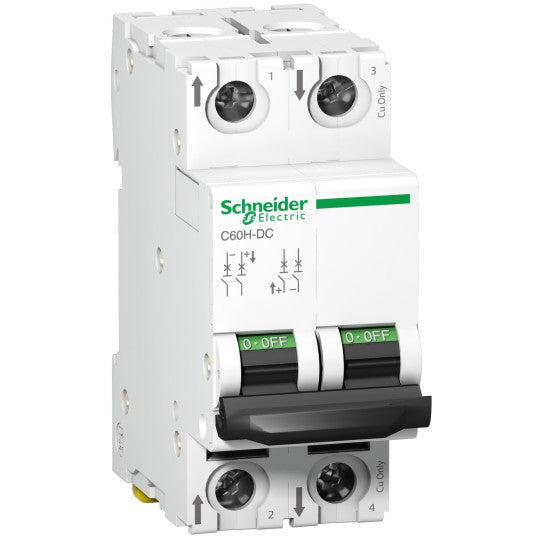

Schneider Electric Acti 9 miniature circuit breaker - C60H - 2 poles - 63 A - C curve - A9N61539
Schneider Electric Acti 9 miniature circuit breaker - C60H - 2 poles - 63 A - C curve - A9N61539

miniature circuit breaker - C60H - 2 poles - 63 A - C curve - A9N61539

SKU : A9N61539

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

miniature circuit breaker - C60H - 2 poles - 63 A - C curve - A9N61539

DESCRIPTION

Range of product: C60
Range: Acti 9
Product name: Acti 9 C60H-DC
Product or component type: Miniature circuit-breaker
Device short name: C60H-DC
Device application: Distribution
Poles description: 2P
Number of protected poles: 2
[In] rated current: 63 A at 25 °C
Network type: DC
Trip unit technology: Thermal-magnetic
Curve code: C
Breaking capacity code: H
Breaking capacity: 10 kA Icu at 440 V DC conforming to EN 60947-210 kA Icu at 440 V DC conforming to IEC 60947-26 kA Icu at 500 V DC conforming to EN 60947-26 kA Icu at 500 V DC conforming to IEC 60947-220 kA Icu at 220 V DC conforming to GB 14048.220 kA Icu at 220 V DC conforming to IEC 60947-220 kA Icu at 250 V DC conforming to GB 14048.220 kA Icu at 250 V DC conforming to IEC 60947-2
Utilisation category: Category A conforming to EN 60947-2Category A conforming to IEC 60947-2
Suitability for isolation: Yes conforming to IEC 60947-2Yes conforming to EN 60947-2
Network frequency: 50/60 Hz
[Ue] rated operational voltage: 500 V DC
[Ics] rated service breaking capacity: 15 kA 75 % conforming to EN 60947-2 - 220 V DC15 kA 75 % conforming to IEC 60947-2 - 220 V DC15 kA 75 % conforming to EN 60947-2 - 250 V DC15 kA 75 % conforming to IEC 60947-2 - 250 V DC4.5 kA 75 % conforming to EN 60947-2 - 500 V DC4.5 kA 75 % conforming to IEC 60947-2 - 500 V DC7.5 kA 75 % conforming to EN 60947-2 - 440 V DC7.5 kA 75 % conforming to IEC 60947-2 - 440 V DC
[Ui] rated insulation voltage: 500 V DC conforming to IEC 60947-2500 V DC conforming to EN 60947-2
[Uimp] rated impulse withstand voltage: 6 kV conforming to EN 60947-26 kV conforming to IEC 60947-2
Contact position indicator: Yes
Control type: Toggle
Local signalling: ON/OFF indication
Mounting mode: Fixed
Mounting support: 35 mm symmetrical DIN rail
Comb busbar and distribution block compatibility: Top or bottom: standard
9 mm pitches: 4
Product weight: 0.256 kg
Colour: White
Mechanical durability: 20000 cycles
Electrical durability: 3000 cycles 500 V DC6000 cycles 500 V DC
Provision for padlocking: Padlockable
Locking options description: In position O
Tightening torque: Power circuit: 2.5 N.m top or bottom
Earth-leakage protection: Without
Product compatibility: C60 auxiliaryC60 accessories
Market segment: Small commercialResidential
Compatibility code: C60H-DC
Standards: EN 60947-2IEC 60947-2
Pollution degree: 3 conforming to EN 60947-23 conforming to IEC 60947-2
Overvoltage category: IV
Tropicalisation: 2 conforming to IEC 60068-2
Operating altitude: 2000 m
Ambient air temperature for operation: -25...70 °C
Ambient air temperature for storage: -40...85 °C
Sustainable offer status: Green Premium productREACh Regulation
Code EAN: 3606480424373
