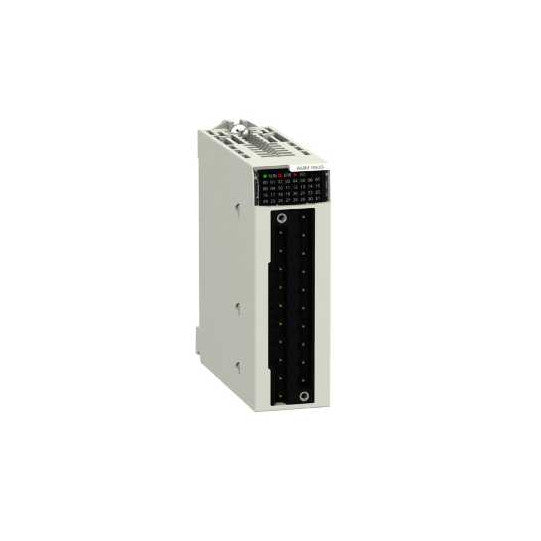

mixed analog I/O module X80 - 4 inputs - 2 outputs - BMXAMM0600

Name: mixed analog I/O module X80 - 4 inputs - 2 outputs - BMXAMM0600
Brand: Schneider Electric
SKU: BMXAMM0600
Availability: InStock

SKU : BMXAMM0600

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation

We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE

Estimated Delivery : 20 November - 26 November.

mixed analog I/O module X80 - 4 inputs - 2 outputs - BMXAMM0600

DESCRIPTION

DESCRIPTION

Range of product:	Modicon X80
Product or component type:	Mixed analog I/O module
Electrical connection:	20 ways 1 connector
Input output isolation:	Non isolated
Input level:	High level
Analogue input number:	4
Analogue input type:	Current 0...20 mACurrent 4...20 mAVoltage +/- 10 VVoltage 0...10 VVoltage 0...5 VVoltage 1...5 V

Analogue input resolution:	12 bits 0...20 mA12 bits 0...5 V12 bits 1...5 V12 bits 4...20 mA13 bits 0...10 V14 bits +/- 10 V
Permitted overload on inputs:	+/- 30 mA 0...20 mA+/- 30 mA 4...20 mA+/- 30 V +/- 10 V+/- 30 V 0...10 V+/- 30 V 0...5 V+/- 30 V 1...5 V
Input impedance:	250 Ohm
Precision of internal conversion resistor:	0.1 % - 15 ppm/°C
Type of filter:	First order digital filtering by firmware
Fast read cycle time:	1 ms + 1 ms x number of channels used
Nominal read cycle time:	5 ms for 4 channels
Measurement error:	0.25 % of full scale 0...20 mA 25 °C output0.25 % of full scale 4...20 mA 25 °C output0.25 % of full scale +/- 10 V 25 °C output0.25 % of full scale +/- 10 V 25 °C input0.25 % of full scale 0...10 V 25 °C input0.25 % of full scale 0...5 V 25 °C input0.25 % of full scale 1...5 V 25 °C input0.35 % of full scale 0...20 mA 25 °C input0.35 % of full scale 4...20 mA 25 °C
Temperature drift:	100 ppm/°C +/- 10 V output100 ppm/°C 0...20 mA output100 ppm/°C 4...20 mA output30 ppm/°C +/- 10 V input30 ppm/°C 0...10 V input30 ppm/°C 0...5 V input30 ppm/°C 1...5 V input50 ppm/°C 0...20 mA input50 ppm/°C 4...20 mA input
Recalibration:	Factory calibrated on outputsInternal on inputs
Minimum crosstalk attenuation:	70 dB
Common mode rejection:	80 dB
Isolation voltage:	1400 V DC between channels and ground1400 V DC between channels and bus750 V DC between group of I/O channels
Output level:	High level
Analogue output number:	2
Analogue output type:	Current: 0...20 mACurrent: 4...20 mAVoltage: +/- 10 V
Analogue output resolution:	11 bits, 0...20 mA11 bits, 4...20 mA12 bits, +/- 10 V
Conversion time:
Maximum conversion value:	+/- 11.25 V +/- 10 V output+/- 11.25 V +/- 10 V input0...30 mA 0...20 mA input0...30 mA 4...20 mA input+/- 11.25 V 0...10 V input+/- 11.25 V 0...5 V input+/- 11.25 V 1...5 V input0...24 mA 0...20 mA output0...24 mA 4...20 mA output
Fallback mode:	PredefinedConfigurable
Operating altitude:	0...2000 m2000...5000 m with derating factor
Status LED:	1 LED (green)RUN1 LED per channel (green)channel diagnostic1 LED (red)ERR1 LED (red)I/O
Product weight:	0.155 kg
Power consumption in W:	2.6 W 24 V DC typical3.2 W 24 V DC maximum0.35 W 3.3 V DC typical0.48 W 3.3 V DC maximum

Vibration resistance:	3 gn
Shock resistance:	30 gn
Ambient air temperature for storage:	-40...85 °C
Ambient air temperature for operation:	0...60 °C
Relative humidity:	5...95 % at 55 °C without condensation
IP degree of protection:	IP20
Directives:	2014/35/EU - low voltage directive2014/30/EU - electromagnetic compatibility
Product certifications:	CERCMCSAEACMerchant NavyUL
Standards:	EN/IEC 61010-2-201EN/IEC 61131-2UL 61010-2-201CSA C22.2 No 61010-2-201
Sustainable offer status:	Green Premium productREACh Regulation

Code EAN:	3595863966268
