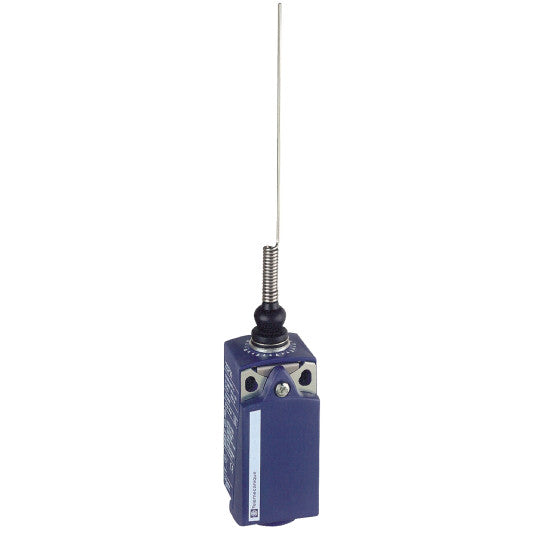

Schneider Electric SCHNEIDER Télémécanique - limit switch XCKP - cat's whisker - 1NC+1NO - snap - M16 - XCKP2106P16
Schneider Electric SCHNEIDER Télémécanique - limit switch XCKP - cat's whisker - 1NC+1NO - snap - M16 - XCKP2106P16

Télémécanique - limit switch XCKP - cat's whisker - 1NC+1NO - snap - M16 - XCKP2106P16

SKU : XCKP2106P16

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

Télémécanique - limit switch XCKP - cat's whisker - 1NC+1NO - snap - M16 - XCKP2106P16

DESCRIPTION

Range of product: Telemecanique Limit switches XC Standard
Series name: Standard format
Product or component type: Limit switch
Device short name: XCKP
Sensor design: Compact
Body type: Fixed
Head type: Multi-directional head
Material: Plastic
Body material: Plastic
Head material: Zamak
Fixing mode: By the body
Movement of operating head: Multi-directional
Type of operator: Spring return cat''s whisker
Type of approach: Multi-directional approach
Number of poles: 2
Contacts type and composition: 1 NC + 1 NO
Contact operation: Snap action
Switch actuation: By any moving part
Electrical connection: Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²
Cable entry: 1 entry tapped for M16 x 1.5 cable gland, cable outer diameter: 4...8 mm
Contacts insulation form: Zb
Positive opening: Without
Minimum torque for tripping: 0.13 N.m
Maximum actuation speed: 1 m/s
Repeat accuracy: 0.1 mm on the tripping points with 1 million operating cycles
Contact code designation: A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to EN/IEC 60947-5-1 appendix AQ300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to EN/IEC 60947-5-1 appendix A
[Ui] rated insulation voltage: 300 V conforming to UL 508500 V (pollution degree 3) conforming to IEC 60947-1300 V conforming to CSA C22.2 No 14
Maximum resistance across terminals: 25 MOhm conforming to IEC 60255-7 category 3
[Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 606646 kV conforming to IEC 60947-1
Short-circuit protection: 10 A cartridge fuse, type gG
Electrical durability: 5000000 cycles, DC-13, 120 V, 4 W, operating rate 5000000 cycles, DC-13, 24 V, 10 W, operating rate 5000000 cycles, DC-13, 48 V, 7 W, operating rate
Mechanical durability: 5000000 cycles
Width: 31 mm
Height: 65 mm
Depth: 30 mm
Product weight: 0.085 kg
Terminals description ISO n°1: (13-14)NO(21-22)NC
Device presentation: Complete product
Compatibility code: XCKP
Specific application: Compact variable
Shock resistance: 50 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance: 25 gn (f= 10...500 Hz) conforming to IEC 60068-2-6
IP degree of protection: IP66 conforming to IEC 60529IP67 conforming to IEC 60529
IK degree of protection: IK04 conforming to EN 50102
Electrical shock protection class: Class II conforming to IEC 61140Class II conforming to NF C 20-030
Ambient air temperature for operation: -25...70 °C
Ambient air temperature for storage: -40...70 °C
Protective treatment: TC
Product certifications: ULCCCCSA
Standards: EN 60204-1IEC 60204-1EN 60947-5-1IEC 60947-5-1CSA C22.2 No 14UL 508
Sustainable offer status: Green Premium productREACh Regulation
Code EAN: 3389110201963
